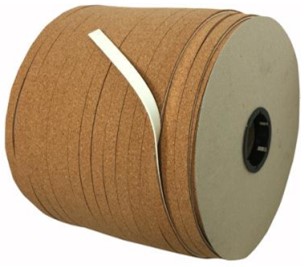

Cork Roll Bobbin for Spool Lisec automatic glass production line

As the professional manufacture, Raybone would like to provide you Cork Roll Bobbin for Spool Lisec automatic glass production line. And Raybone will offer you the best after-sale service and timely delivery.

“C” Series Cork Separator Pads

• On Coil/Spool/Bobbin

• Conceived For Automatic Cork Pad Applicator

• Automatically controlled application on insulating glass units for contact free stacking.

B Type

• Materials: Plain Cork,

White self-adhesive PVC foam,

Special device for peeling off the protective liner when using)

• Without die cutting, for Lisec Automatic Cork Pad Applicator

• The cork pads are fully automatically applied to the back face of the sealed insulating glass unit.

• The cork pads are supplied via endless tapes and applied to the glass units by vertically moveable

application heads.

•Positioning of the pads for every glass size is determined by automatic program or by operator

•Up to 4 pads can be applied in the vertical direction

•Standard Model/Size/Thickness/Packing

MODEL NO.	WIDTH	THICKNESS	LENGTH/COIL	VOL.(cbm)	GW(kg)
CB-1830	18mm	3mm cork + 1~2mm foam	300m	0.033	8
