18mm Cork Pads with Adhesive
  • 18mm Cork Pads with Adhesive - 0 18mm Cork Pads with Adhesive - 0
  • 18mm Cork Pads with Adhesive - 1 18mm Cork Pads with Adhesive - 1

18mm Cork Pads with Adhesive

As one of “Raybone” standard products, 18mm cork pads with adhesive, has competitive price advantage and been very popular in most of the European and American markets. In the past 20years, “Raybone” acted as a large-scale Cork products manufacturer and supplier in China. As the professional cork pads producer, we would like to provide you the standard 18mm cork pads with adhesive by best after-sale service and timely delivery.

Send Inquiry

PDF DownLoad

Product Description

“Raybone” 18mm cork pads with adhesive has good performance for glass shipping and packing. It is easy to be removed cleanly, yet adhered securely to architectural glass, auto glass, furniture glass, stone, windows & doors, during transporting, packing, storage and installation. Setting between the glass, “Raybone” standard 18mm cork pads with adhesive can absorb vibration, maintain position and prevent breakage. Glass, windows, doors and mirrors are fragile.


Parameters of 18mm cork pads with adhesive:

Components

Plain cork, adhesive PE film, protective liner

Density of cork(KG/m³)

190±20

Hardness of cork

70-76 shore

Tolerance of thickness

0.2mm

Tolerance of length

0.5mm

Absorbability (Newton)

3±1 N/sq.cm(+20℃)

Acidity & alkalescence

Neutral

Heat-resistant

100 Centigrade, over 2 hours, no residue on glass

Humidity-resistant

relative humidity 95%, over 2 weeks, no residue on glass

Wear

pressure 45KG, normal temperature, 180 days, no residue on glass

Recommend temperature of processing

+18℃up to +30℃

Storage

at 18℃and about 60% relative humidity of air, clean and dry in original cardboard, to protect against UV-radiation and too high humidity of air



Size of cork pads with adhesive:

Standard thickness: 3mm

Other normal thickness: 1.5mm、2mm、4mm、5mm

Standard size: 18x18mm

Other normal size: 10x10mm、15x15mm、20x20mm、40x40mm

Above can be customized as per your requests.



Standard packing details

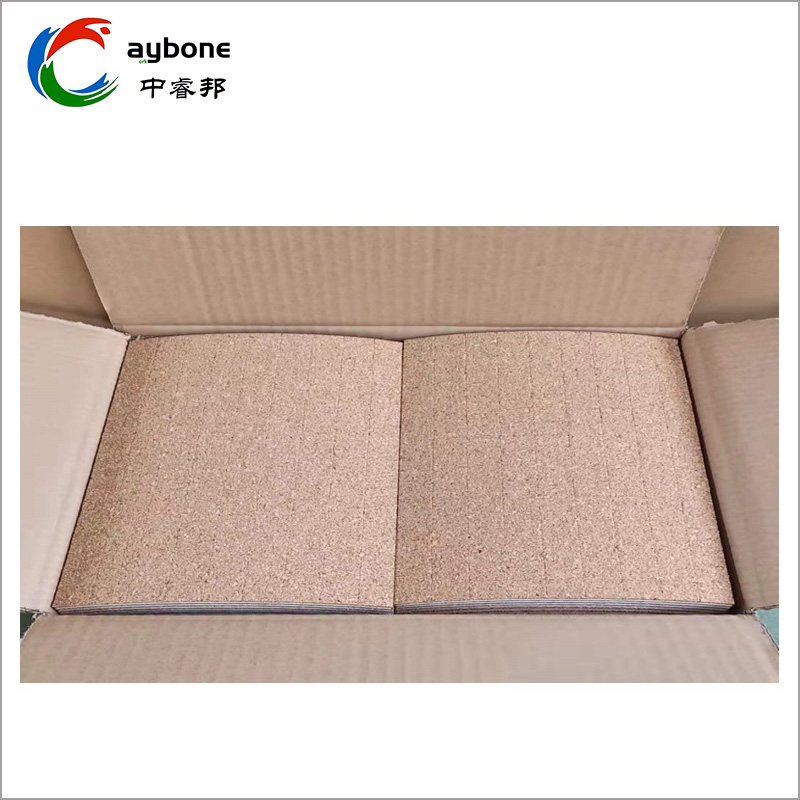

In sheet cork pads with adhesive:

MODEL NO.

PAD SIZE

THICKNESS

PAD/BOX

BOX SIZE(CM)

VOL.(CBM)

G.W.(KG)

SB-1030

10x10mm

3mm cork

117760pcs

34*35*36

0.043

10.8

SB-1530

15x15mm

3mm cork

53700pcs

34*35*36

0.043

10.5

SB-1830

18x18mm

3mm cork

35000pcs

34*35*36

0.043

9.8

SB-2030

20x20mm

3mm cork

29000pcs

34*35*36

0.043

10.6

SB-4030

40x40mm

3mm cork

7360pcs

34*35*36

0.043

10.5

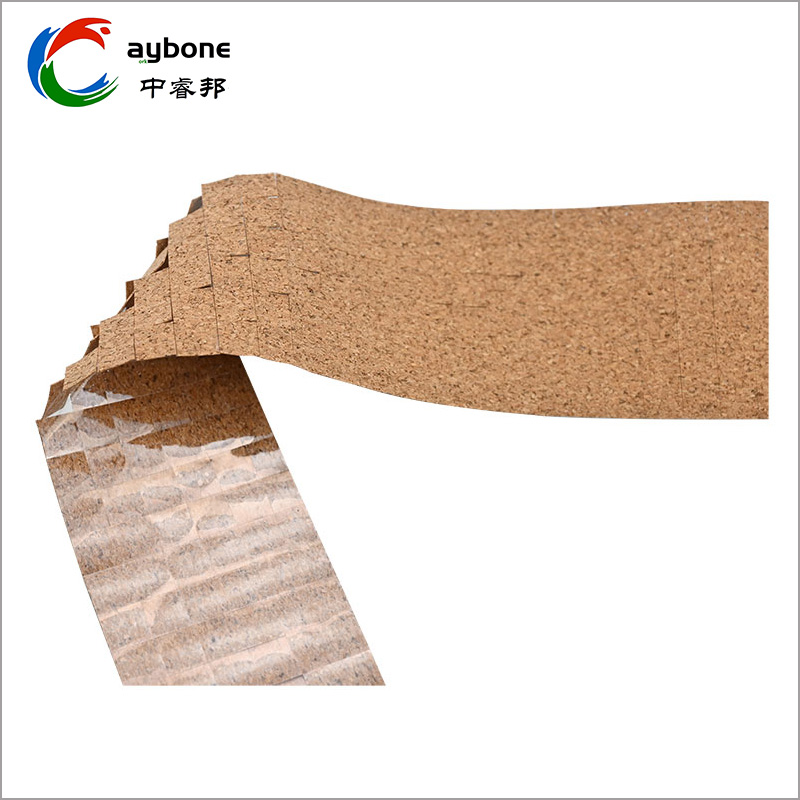

In roll cork pads with adhesive:

MODEL NO.

PAD SIZE

THICKNESS

PAD/BOX

BOX SIZE(CM)

VOL.(CBM)

G.W.(KG)

RB-1030

10x10mm

3mm cork

64800pcs (2 rolls)

30*31*35

0.033

6.2

RB-1530

15x15mm

3mm cork

28800pcs (2 rolls)

30*31*35

0.033

6.4

RB-1830

18x18mm

3mm cork

20000pcs (2 rolls)

30*31*35

0.033

6.5

RB-2030

20x20mm

3mm cork

16200pcs (2 rolls)

30*31*35

0.033

6.4

RB-4030

40x40mm

3mm cork

4050pcs (2 rolls)

30*31*35

0.033

6.4


Installation Instructions of cork pads with adhesive:

Please place the cork pads on the edge of the glass, one pad per 30cm or 40cm, and totally 8 pads on

the area of 1 square meter; more pads must be put on the middle of glass for the area more than 1 square meter and the actual quantity should be subject to the reality.


Principle: the smaller the glass area is, the less the pads need;

For the same area glass, the more the cork pads are used, the better the protection effect is.

Please use the approximate cord pads quantity according to the real situation.
