25mm Cork Pads with Cling Foam

“Raybone” is a large-scale Cork pads manufacturer and supplier located in China Middle. We have about 20 years’ experience on exporting 25mm Cork Pads with cling foam. As one of our main products, 25mm Cork Pads with cling foam, has competitive price and good service by many channels all over the world. High quality Cork Pads with cling foam is offered by China manufacturer “Raybone”. Buy 25mm Cork Pads with cling foam which is of high quality directly with low price.

Send Inquiry

PDF DownLoad

Product Description

“Raybone” China Quality 25mm Cork Pads with cling foam is professional packing materials for glass factory. Glass, windows, doors and mirrors are fragile. “Raybone” 25mm Cork Pads with cling foam are easy to be removed cleanly, yet adhered securely to architectural glass, auto glass, furniture glass, stone, windows & doors, during transporting, packing, storage and installation. Setting between the glass, the cork pads can absorb vibration, maintain position and prevent breakage.

Parameters of 25mm Cork Pads with cling foam:

Components	Plain cork, self-adhesive cling foam, protective liner
Density of cork(KG/m³)	190±20
Hardness of cork	70-76 shore
Tolerance of thickness	0.2mm
Tolerance of length	0.5mm
Adsorbability(Newton)	3±1 N/sq.cm(+20℃)
Acidity & alkalescence	neutral
Heat-resistant	100 Centigrade, over 2 hours, no residue on glass
Humidity-resistant	relative humidity 95%, over 2 weeks, no residue on glass
Wear	pressure 45KG, normal temperature, 180 days, no residue on glass
Recommend temperature of processing	+18℃up to +30℃
Storage	at 18℃and about 60% relative humidity of air, clean and dry in original cardboard, to protect against UV-radiation and too high humidity of air

Size of 25mm Cork Pads with cling foam:

Standard thickness: 3mm

Other normal thickness: 1.5mm、2mm、4mm、5mm

Size: 25x25mm

Above can be customized as per your requests

Standard packing details

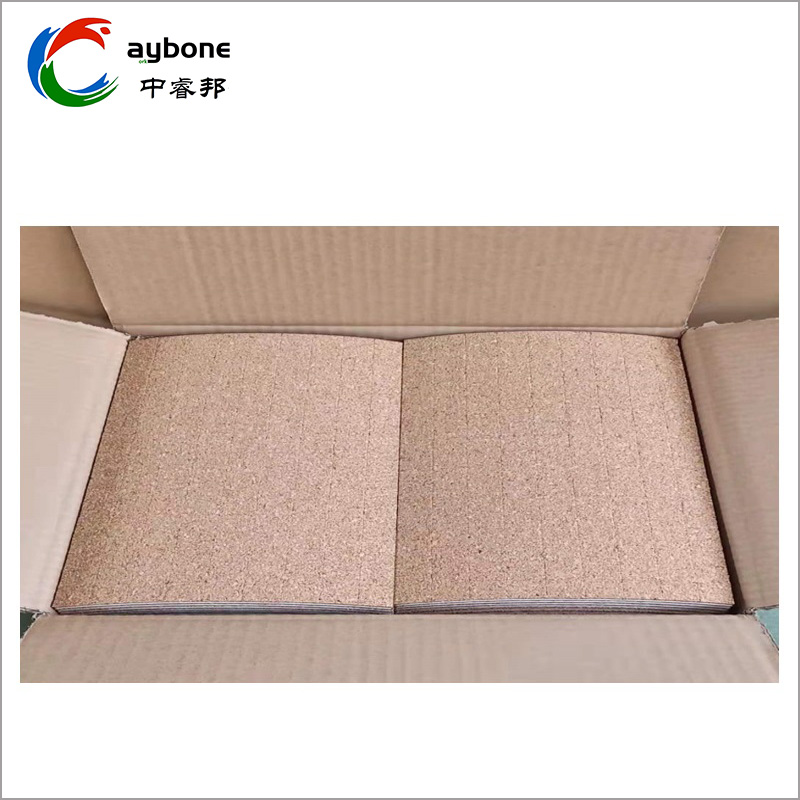

In sheet 25mm Cork Pads with cling foam:

MODEL NO.	PAD SIZE	THICKNESS	PAD/BOX	BOX SIZE(CM)	VOL.(CBM)	G.W.(KG)
SA-2530	25x25mm	3mm cork	9800pcs	343536	0.043	11.5

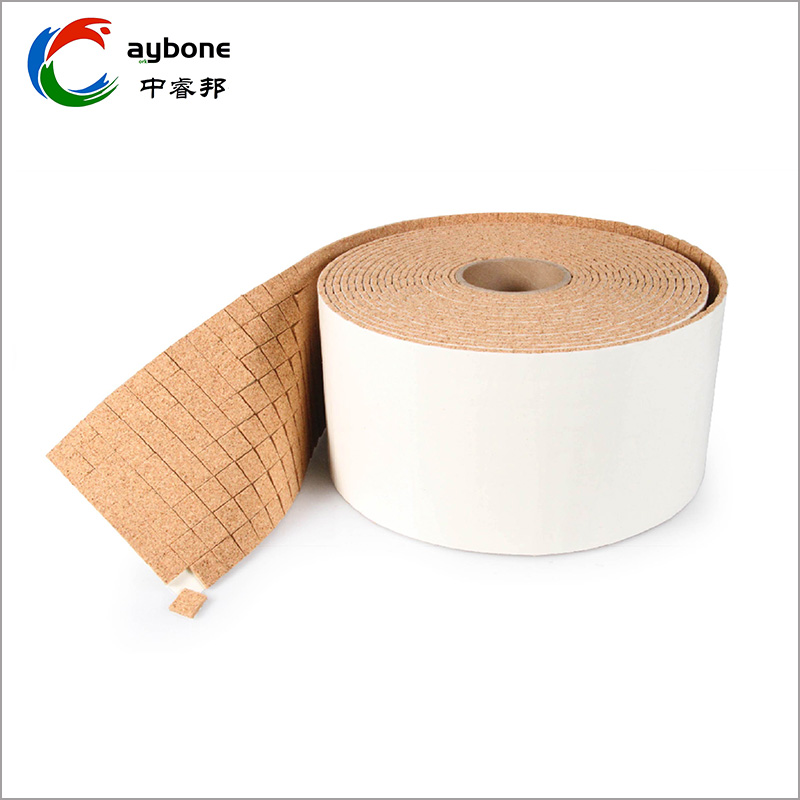

In roll 25mm Cork Pads with cling foam:

MODEL NO.	PAD SIZE	THICKNESS	PAD/BOX	BOX SIZE(CM)	VOL.(CBM)	G.W.(KG)
RA-2530	25x25mm	3mm cork	9600pcs (2 rolls)	353632.5	0.041	7.2

Installation Instructions of 25mm Cork Pads with cling foam:

Please place the cork pads on the edge of the glass, one pad per 30cm or 40cm, and totally 8 pads on

the area of 1 square meter; more pads must be put on the middle of glass for the area more than 1 square meter and the actual quantity should be subject to the reality.

Principle: the smaller the glass area is, the less the pads need.

For the same area glass, the more the cork pads are used, the better the protection effect is.

Please use the approximate cord pads quantity according to the real situation.
