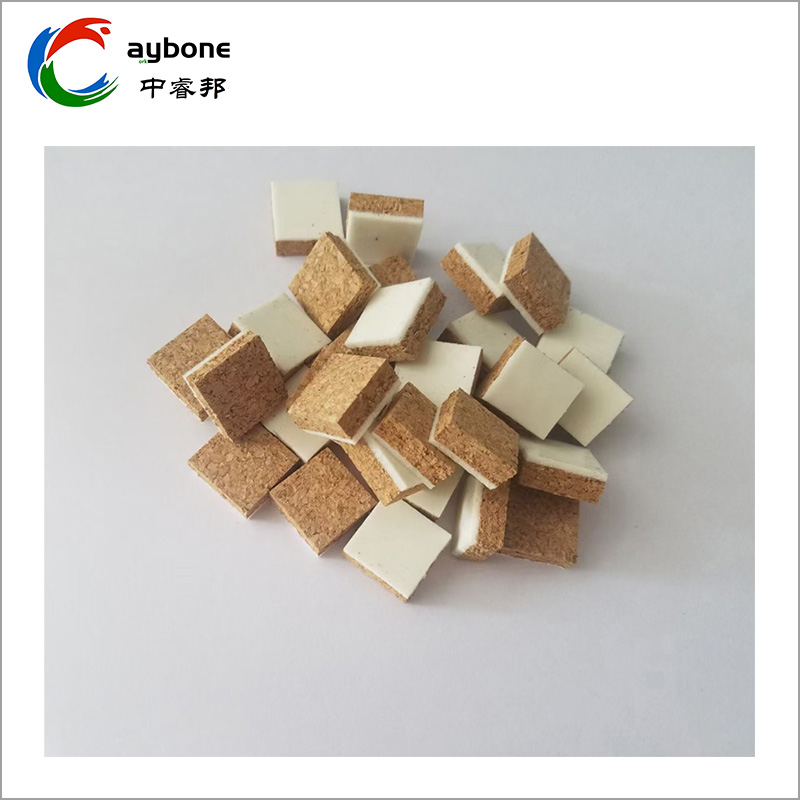

Cork Pads with Adhesive for Auto Glass
  • Cork Pads with Adhesive for Auto Glass - 0 Cork Pads with Adhesive for Auto Glass - 0

Cork Pads with Adhesive for Auto Glass

“Raybone” is a professional Cork pads supplier in China for auto glass. Since our foundation, we have produced and sold Cork Pads with adhesive for Fuyao Auto Glass Group, one of the biggest auto glass manufacturers in the world. You can rest assured to buy Cork Pads with adhesive for auto glass from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

PDF Download

Product Description

High quality “Raybone” Cork Pads can protect the auto glass well during packing and shipping. Glass, windows, doors and mirrors are fragile. “Raybone” Cork Pads with adhesive for auto glass are easy to be removed cleanly, yet adhered securely to architectural glass, auto glass, furniture glass, stone, windows & doors, during transporting, packing, storage and installation. Setting between the glass, the pads can absorb vibration, maintain position and prevent breakage.


Parameters of Cork Pads with adhesive for auto glass:

Components

Plain cork, adhesive PE film, protective liner

Density of cork(KG/m³)

190±20

Hardness of cork

70-76 shore

Tolerance of thickness

0.2mm

Tolerance of length

0.5mm

Adsorbability(Newton)

3±1 N/sq.cm(+20℃)

Acidity & alkalescence

Neutral

Heat-resistant

100 Centigrade, over 2 hours, no residue on glass

Humidity-resistant

relative humidity 95%, over 2 weeks, no residue on glass

Wear

pressure 45KG, normal temperature, 180 days, no residue on glass

Recommend temperature of processing

+18℃up to +30℃

Storage

at 18℃and about 60% relative humidity of air, clean and dry in original cardboard, to protect against UV-radiation and too high humidity of air



Size of Cork Pads with adhesive for auto glass:

Standard thickness: 3mm

Other normal thickness: 4mm、5mm、8mm、16mm、20mm

Standard size: 18x18mm

Other normal size: 10x10mm、15x15mm、20x20mm、40x40mm

Above can be customized as per your requests



Standard packing details

In sheet Cork Pads with adhesive for auto glass:

MODEL NO.

PAD SIZE

THICKNESS

PAD/BOX

BOX SIZE(CM)

VOL.(CBM)

G.W.(KG)

SB-1030

10x10mm

3mm cork

117760pcs

34*35*36

0.043

10.8

SB-1530

15x15mm

3mm cork

53700pcs

34*35*36

0.043

10.5

SB-1830

18x18mm

3mm cork

35000pcs

34*35*36

0.043

9.8

SB-2030

20x20mm

3mm cork

29000pcs

34*35*36

0.043

10.6

SB-4030

40x40mm

3mm cork

7360pcs

34*35*36

0.043

10.5

SB-2020

20x20mm

20mm cork

4352pcs

34*35*36

0.043

12

SB-4020

40x40mm

20mm cork

1088pcs

34*35*36

0.043

12



Installation Instructions of Cork Pads with adhesive for auto glass:

Please place the cork pads on the edge of the glass, one pad per 30cm or 40cm, and totally 8 pads on the area of 1 square meter; more pads must be put on the middle of glass for the area more than 1 square meter and the actual quantity should be subject to the reality.



Principle: the smaller the glass area is, the less the pads need.

For the same area glass, the more the cork pads are used, the better the protection effect is.

Please use the approximate cord pads quantity according to the real situation.
